The Systems

Custom made for you

The whole system of cement grinding plant mainly includes cement grinding, cement homogenization and batching, cement packaging and bulk loading. And the system is composed of cement mill, OSEPA high-efficiency separator, elevator, packing machine and so on. In order to meet the customers' requirements on different granularity of auxiliary materials, it can be equipped with high-efficiency hammer crusher for optimal combination and classification.

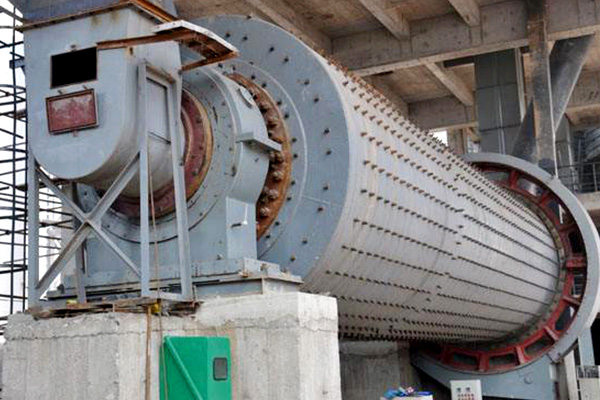

  • Cement Ball Mill Cement Ball Mill
  • OSEPA High-efficiency Separator OSEPA High-efficiency Separator
  • Elevator Elevator
  • Packing Machine Packing Machine

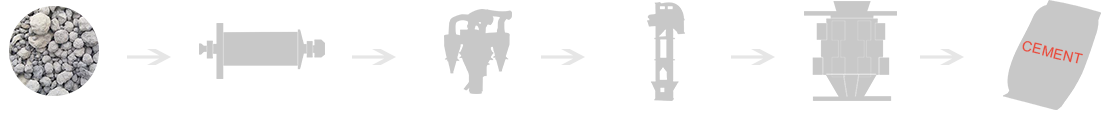

Process flow chart

Process flow chart
  • 01

    Cement grinding system

    Various materials are quantitatively given in the cement batching process according to the set ratio. After the materials are discharged proportionally by the feeding metering equipment, they are sent to the ball mill by belt conveyor.

  • 02

    Powder separation system

    The ground material is transported up by the bucket elevator to the separator. After separating, the materials that do not meet the particle size requirements are transported from the air chute to the ball mill for regrinding. The dust of the ball mill is transported to the dust collector by the pipeline. The qualified materials sorted by the separator and the dust deposited by the dust collector are transported together by the air chute to the bucket elevator, and then lifted to the stock bin.

  • 03

    Packing system

    The materials in the stock bin are conveyed from the air chute to the bucket elevator, and then from the bucket elevator up to the vibrating screen to screen out the impurities in the materials. The filtered materials enter the silos, then are sent to the packing machine by the rigid impeller feeder, and finally the cement packed into bags is transported to the warehouse by the flat conveyor.

Available Benefits

  • Less investment,
    high return

    The CHAENG cement grinding station overcomes the traditional equipment’s shortcoming that the clinker grinding cost is too high. The system configuration is reasonable, the production efficiency is high, the output is large.

  • Durable equipment,
    simple operation

    The cement grinding station is equipped with a modern electronic control operating system. It has a high degree of automation and simple operation, requiring no manual operation except for the switch machine and routine maintenance.

  • EPC mode,
    saving purchase costs

    CHAENG can provide customers with: ① complete equipment and accessories for cement grinding station; ② EPC services: complete solutions including design, research and development, manufacturing, transportation, installation, commissioning, training, and after-sales.

Suggestions on Scheme Selection

Capacity Feeder Machine Cement Mill O-Sepa Separator Bucket Elevator Packing Machine
15t/h DEL0620 φ2.2x11m N500 NE100x25m BGYJ-2
50t/h ZSW100 φ3.2×13m N1500 NE200x31m BYHW-8

CHAENG can provide the complete solutions of 15-100t/h cement grinding station for you. Please send email to for the quotation.

Project Cases

Cement Grinding Station Construction Project

  • The configuration of the Cement Grinding Station:
  • Feeder: DEL0620
  • Cement mill: φ2.2x11m
  • Separator: N500
  • Elevator: NE100x25m

Customer feedback:

The designers of CHANGE are awesome, they help us make a very good plan with low input but high output. CHAENG, an amazing enterprise!

Other pictures of signing projects:

  • Mexican Client Mexican Client
  • Salvadoran Client Tanzanian Client
  • Chile Client Chile Client

Introduction of CHAENG

Established in 1958 Cement equipment manufacturing enterprise in China with more than 60 years of experience, More than 500 sets of processing equipment Rich experience in exporting more than 3000 large grinding equipment Providing professional cement grinding process for clients
CHAENG was found in 1958, located in National Sustainable Development Experiment Area,Mengzhuang Town, Huixian City, Henan Province.Since we produced the first ball mill in 1968, our factory has produced more than 3000 sets mills and rotary kilns.Along with the national “The Belt and Road” strategy, and actively go out, our products are exported to the US, Germany, Russia, Japan, Korea, Indonesia, Uzbekistan, Pakistan, Vietnam and more than 60 countries and regions, and has achieved long-term cooperation with Sinoma, Shanghai Baosteel, Korea POSCO and other well-known enterprises at home and abroad, and becomes industrial waste slag resource recycling national high-tech enterprises. CHENG has achieved gorgeous turn from a single equipment supplier to the grinding system integrated service provider of friendly environment builders.
