`B`all mill case in Turkey-- sample case, more reliable

Purchasing model: φ3.2×6.5m ball mill

Application field: quarry in Turkey

Manufacturer: Xinxiang Great Wall

Customer reviews: We are pleased with our first cooperation that Chaeng (Xinxiang Great Wall Machinery) is very professional and very warm. We hope to cooperate again in mining, steel, cement and other equipment procurement in the future.

Learn more >>

`R`easons of purchasing ball mill of Chaeng (Great Wall) --Applicable to different industries grinding work

1. Large capacity, deal with various materials---- Diversifying choices

2. Inexpensive, simple operation--- Low cost

3. Good Grinding quality----- Finished product sales fast

4. Provide spare parts replacement services---- Saving procurement time

cement

material

chemical

slag

`B`all mill technical advantages - every design make you feel more convenient

Ball mill Composed by the feeding device, the material device, cylinder, transmission (reducer, small drive gear, motor, electronic control) and other major components.

Hollow shaft By the steel casting composition, and the lining is removable, rotary gears using hobbing casting, cylinder body with a wear-resistant liner, it has good wear resistance. Smooth operation and reliable performance.

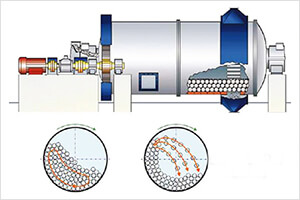

Working principle

Ball mill is one kind of ore beneficiation equipment, which is mainly used in ore processing operation and commonly seen in ore processing plant. It can grind small pierces of ore into very fine particles, thus preparing for subsequent processing. After being ground by ball mill, ore pulp is formed, then being selected. According to different grinding methods, ball mill can be divided into wet ball mill and dry ball mill. Also, it can be divided into overflow ball mill and grid ball mill according to different discharging methods. By adjusting rotating speed and discharging device, the concentration of ore pulp can be controlled.

Technical advantages

The transmission saves energy

There is drive and grinding energy consumption match,so it can greatly save energy.

Rotary kiln cylinder

Rotary Kiln cylinder, liner, medium, partition plate, the material grate plate are used high-quality original composition.

Grinding efficiency, liner with good quality

Liners and abrasives using alumina ceramic, quartz, SILEX or special materials, hard minerals with iron pollution-free design.

The material end design is flexible

The discharge end design is reasonable, the customer can according to their needs to choose and match the iron remover.

Feeding a large amount of feed

Reasonable feeding port design, increasing the amount of feed.

Using closed system to reduce dust

Ultra-fine ball mill and grading machine to form a closed system, negative pressure transmission, no dust, reduce the harm to human body.

`M`ain Spare Parts

hollow shaft

girth gear

wearable liners

reducer

division plate

bearing bush

bearing pedestal

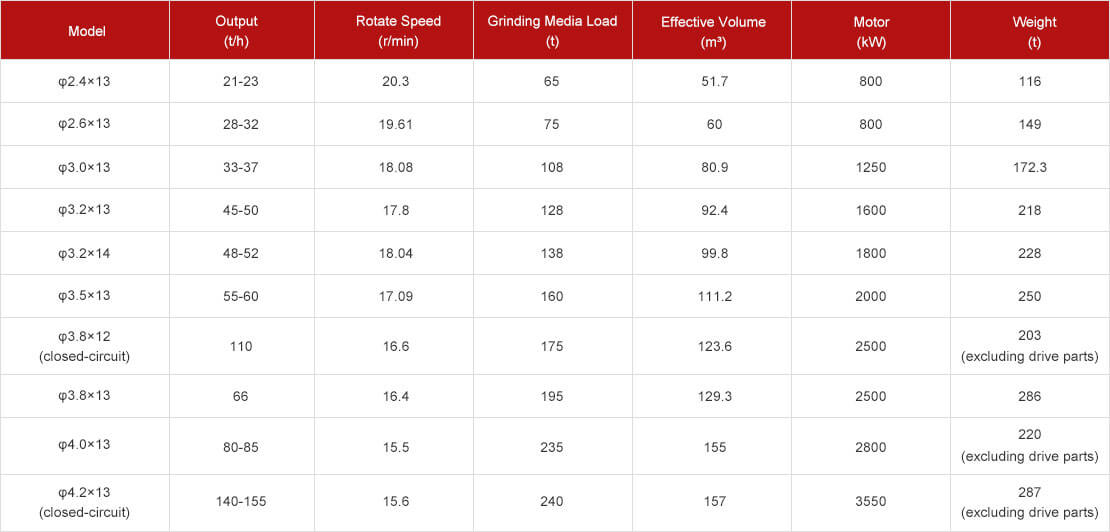

`T`echnical Parameters

`C`ement grinding plant: simpleness, small investment, high profit

Build cement grinding plant near the cement sales market in the large and middle-sized cities. Most of the cement admixtures are from industrial residue in the city, and the cement grinding plant can vastly digest the industrial residue such as slag, coal ash, furnace slag, coal gangue and so on near the city and is a green and environmental industry.

The technological process adopted by the cement grinding plant is simple, the operation is easy and the investment of process and equipment is small, and the plant is power-saving and environmental and has the advantage of allowing to mix admixtures.

simpleness

small investment

high profit

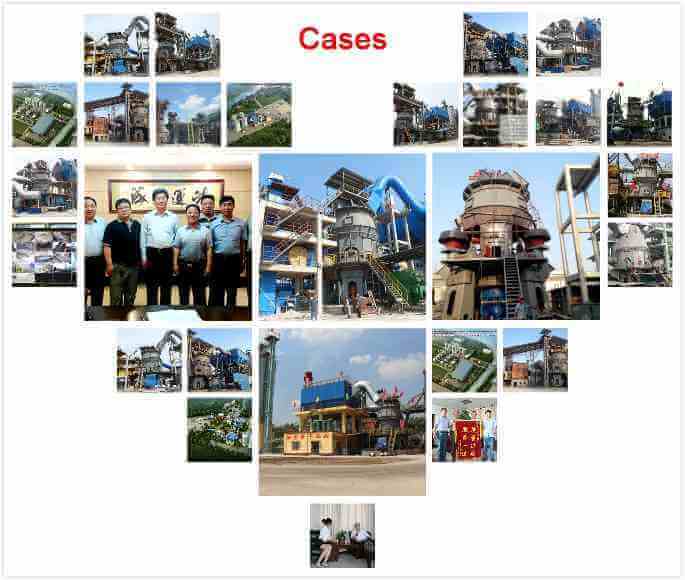

`R`epresentative projects of CHAENG

Construction of the cement grinding plant production line with annual production of 1,000,000-1,200,000t ;

construction of the cement clinker grinding plant production line with annual production of 500,000-600,000t;

construction of the cement clinker grinding plant production line with annual production of 200,000-300,000t;

construction of the cement clinker grinding plant production line with annual production of 100,000t.

`T`echnological process

CHAENG offers many services about the cement grinding plant including engineering design, civil construction, whole set equipment, installation and commissioning, technical services and project EPC.

The grinding plant is equipped with high-quality main equipment in grinding system, powder selecting system, dust collecting system and packing system, and the plant finally will make the specific surface area of the cement products reach 320 ㎡/kg. There is no separate admixture drying system, and the plant adopts the mill integrating drying and grinding. The specially designed drying-grinding cement mill completely meets the requirements of the contract, is accepted and successfully goes into operation, and receives many favorable responses from the owners.

Equipment supplied : Ball mill、Vertical mill 、Packing machine

`P`rocess advantages

①The cement grinding plant adopts international advanced cement manufacturing technology, and after goes into operation, it will be clean and have high quality, low consumption and high yield.

②The configuration scale of the main equipment is the largest, the quality control measures and equipment are complete, and the quality is stable and reliable and can effectively guarantee the product quality.

③In the manufacturing process, the energy consumption is the lowest and the dust emission is the smallest.
